This Guide to the Tascam HS-P82 and companion RC-F82 is intended to provide the new user a concise review of the operation and setup of this portable multitrack recorder, along with explanations and a suggested workflow for professional film/video applications.

It is not meant to replace the comprehensive Owners Manuals provided with the equipment, but rather to supplement those documents.

Note: Please download the latest version of this guide, Users Guide to the Tascam HS-P82 v1.20 for Film/Video Applications by Ginsburg, which has been updated to reflect the changes & improvements brought about by firmware version v1.20. The new version of this guide also features better explanations of operation and real world workflow for professional filmmaking applications.

This section is an introduction to the basic operation of the Tascam HS-P82 recorder itself. These steps will guide you through the initial setup of the machine and explain the primary touchscreens and controls that you will need for film/video applications.

One of the nice features of the Tascam is the redundancy of control settings. As you explore the layout of the touchscreen software, you will find that many of the same settings are accessible from multiple screens. In the field, this advantage can really streamline your workflow.

Powering Up

The Tascam can be powered from internal batteries, AC adapter, or external 12vDC via industry standard XLR 4-pin connector.

The unit comes with an NP style Battery pack that takes 10 AA alkalines. Even if you are planning to use AC or external power, it is a good idea to load up the battery pack and install it; it will serve as a power backup should your external power be interrupted.

If you have access to them, you could also use standard NP style, rechargeable video batteries.

Factory supplied AC adapter outputs 12vDC via its donut connector.

Owners (not renters) of this Tascam are encouraged to have a technician replace the OEM donut connector with an XLR 4-pin, as the XLR 4-pin is a more secure connection.

External 12v DC or battery pack equipped with standard XLR 4-pin. Note that the industry standard for the XLR 4-pin is pin 1=positive, and pin 4=negative. Pins 2 and 3 are not used.

Format your CF card

After powering up the unit, press MENU button. Select CF/USB MANAGE screen. Full format the first time you are using a new or used card. It can take a while, so do this BEFORE you arrive on set. Subsequently, just use the quick format button.

Most mixers utilize the following workflow: Begin the project with a full formatted, fresh compact flash card. At the end of the day, or when the card is almost full, remove the card and transfer the files over to a laptop. As soon as the used card is removed, replace it immediately with a fresh one. Perform a quick format, and then set up your project files, so that your recorder is good to go. (Keep a written notepad with all of your project specs and naming conventions, so that all of your “blank” cards remain consistent.) After transferring the files from the used card, perform a quick format and project setup on that card, as well. In this manner, you will always have one in the machine, and another ready for a quick change out.

 New system firmware version 1.10 offered during the Fall of 2011 enables you to record to two compact flash cards simultaneously, so that your material is still safe in the event that one CF card malfunctions during a recording. A REC MODE tab has been added to the REC SET UP screen, which enables you to activate the Mirror Record function. I recommend that you use two compact flash cards of the same manufacture and read/write specs to insure the best results. Error messages may occur otherwise; as well as if there is not enough memory remaining on one of the cards. The Home screen shows the status of both CF cards.

System Setup

From the MENU button, select the SYSTEM SETUP screen.

Keyboard type: US.

Solo mode: The default setting for SOLO is SINGLE. That means only one channel at a time can be solo monitored. If you change the solo mode to MIX, then it is possible to highlight and monitor as many channels simultaneously as you want to. MIX is better for film/video applications.

Slate type: you will find yourself alternating between Internal Mic for voice slating your takes, and the TONE setting for recording a headtone at the beginning of your recording session.

Reference Level: These settings do two functions. Not only do they set the record level of the tone generator (which is normally set to -20dB), but it also controls the level for your analog “line level input” such as when you plug in an external mixing panel. So in practice, you would select the -20dB button for recording tone, but later you may need to select a higher setting if you need more gain from the line level inputs. (This will most likely be corrected in a later firmware software release.)

Set the internal clock and date by selecting the tab at the bottom of the screen. Just press any of the displays to adjust the numbers shown.

Create a PROJECT

A project is essentially the name of your film or video, along with the basic recording format. It is possible to host multiple projects on the same CF card, even if those projects use different formats.

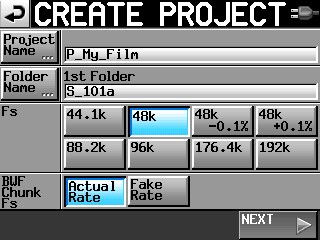

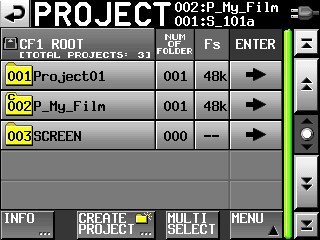

Press PROJECT button. Select Create Project tab at bottom of screen.

Press the tab on the left to NAME your project. DO NOT use the whole word “project” in your new name; it is too long and will not always be displayed! Just abbreviate it as P_ name. (letter P, underscore, brief name or number). Example: P_My_ Film

Press the tab on the left to NAME your folder. Note that TASCAM uses the term “folder” for what we would call “scene” in filmmaking. On the Tascam, you store all of your takes for each scene inside of that scene folder. It is a very organized way of keeping track of stuff!

DO NOT use the whole word “scene” in your new folder name; it is too long! Just abbreviate it as S_ number. (letter S, underscore, scene number/letter). Example: S_101A

Next, select the correct Fs (SAMPLING RATE) for your project. Most of the time, this will be 48k. Sometimes, the post production people will ask for 96k. Depending on your video editing software, you may even be asked to use 47.952 or 48.048, which are labeled as 48k +/-

It is your responsibility to make sure that you record in the correct format and frame rate, so ask the Post Production Supervisor for the correct settings to use. NEVER GUESS. NEVER ASSUME. Different editing houses and labs may prefer different settings according to their software and in-house workflow.

If you are selecting the pull-down or pull-up rate (48k +/-), you can select the FAKE RATE button in order to stamp a 48k label onto a file in order to fool some recorders into performing a pull-up or pull-down in order to sync up with some sprocketed FILM projects. Otherwise, use the Actual Rate setting.

(You select the bit rate, 16 or 24, from the REC SETUP screen, File Format tab, as described further below).

Select NEXT at the bottom of the screen…

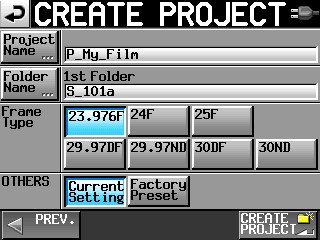

Select the correct FRAME RATE for your project. Most so called 24 frame video and HD video is actually 23.976. Standard video is 29.97 (drop frame or non-drop frame, make sure you know which is correct). Sprocketed or electronic FILM may require 24F or 30ND; be sure to ASK the lab or the Post Production Supervisor.

After entering all of your parameters, you may finalize your choices by confirming the CREATE PROJECT button at the bottom of the screen.

Sync T/C

Press the MENU button, and select Sync T/C. This is where you set your timecode details. Note that the timecode frame rate was already set when you selected your FRAME RATE during Project creation.

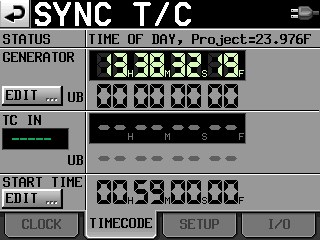

Go to the TIMECODE tab.

The STATUS window displays the frame rate that you selected for this project.

You can select to EDIT or manually enter User Bits. This is non-changing information that is part of the timecode data, such as a date, production number, or other simple value.

You can also manually enter a start value for the timecode. This will begin when you select the FREE RUN or REC RUN buttons on the setup tab.

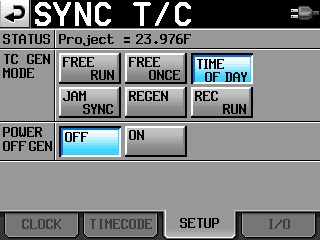

Go to the SETUP tab.

Select a generator mode:

TIME OF DAY refers to whatever time the internal clock is set to. It will continue to generate, even if the Tascam is powered off, so long as there is a battery inside. Many soundmixers prefer this setting, as it is easy for any crew member to know the correct timecode just by looking at their watch!

FREE RUN means that once you manually enter a starting timecode, the generator will continuously run.

FREE ONCE is similar to what Denecke would call a one-time jam sync. The generator will lock onto an incoming timecode signal, sync to it once, and then continue to run on its own after the external or master timecode has been disconnected. (default factory setting) Note that the HS-P82 will subsequently ignore external timecode, unless you switch modes to something else and back again. This is the main difference to JAM SYNC. Kind of what happens when you jam sync the timecode slate to a recorder, but in this instance the recorder jam syncs to an external master source.

JAM SYNC is similar to FREE ONCE, except that the internal timecode generator will continue to read and synchronize to the incoming signal. If the external timecode becomes disconnected, then the Tascam will enter a free run mode. Although Free Once is the factory default, JAM SYNC is the preferred mode to use by most Sound Mixers, since it allows the Tascam to continually update to the latest external (jam sync) code coming in.

REGEN is what we would commonly refer to as external timecode mode. The Tascam reads the incoming timecode, and regenerates it as a clean signal.

REC RUN is when the timecode generator only runs during the RECORD mode. If the Tascam is in stop or pause, so is the generator. This will give all of your recorded files a continuous timecode without gaps. However, cameras and timecode slates will be difficult to maintain sync with, unless you physically cable or transmit to them at all times. Once they are disconnected from the recorder, other devices will have no way of knowing when the Tascam is recording or stopped.

Power Off gen: the factory default setting is OFF. When the TC generator is set to TIME OF DAY, REGEN, or REC RUN – this setting has no effect. The power-off timecode generation requires a battery to be installed in the rear NP slot (the HS-P82 doesn't have a secondary battery just for this purpose).

The I/O tab allows you to assign the BNC OUT 1 connector as timecode output or AES output; and BNC OUT2 can be WORD sync output or WORD sync throughput. Usually just leave it as timecode out and word out, unless you are doing something advanced (in which case you would know).

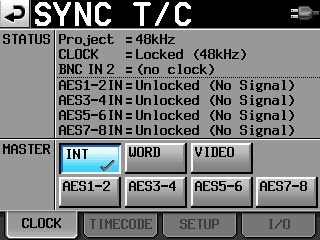

The CLOCK tab is for indicating whether the timecode signal is locking to the internal clock (default), word or video sync, or AES. Usually, just leave it on INTERNAL clock, unless you are doing something advanced.

Panel Lock Function

Depress the HOME button and then the MENU button while still depressing the HOME button, and the panel LOCK/UNLOCK screen will appear. All three of the windows should say UNLOCK. It is possible to lock groups of the controls, should the need arise.

Enable the Record Tracks

Before you can record to any tracks, you must manually “arm” them, that is, enable them ready for recording. Otherwise, tracks are locked out and will NOT record.

From the MENU button, select the REC SETUP screen. From the REC TRACKS tab at the bottom of your screen, simply press each of the tracks that you wish enabled. Don’t forget to also enable the LR 2mix button on the end, which is the master track that you can mix all of the other tracks down to, in addition to recording them as individual iso’s.

Note that you can also enable/disable record tracks from the HOME screen, as well. Just select the REC TRACK tab at the bottom of the screen. This is where you would normally access the tracks during a production session, after the initial setting up.

The FILE FORMAT tab allows you to select mono (default)or poly formats for your tracks, the bit rate (16 or 24), mono file placement (subfolder is the default), max file size (2GB is default), and whether the file is split (default) or stays intact when you hit the pause button.

Important note: the default bit rate for the Tascam is 24 bit, which would be correct for music. However, for film/video, the 16 bit setting is more prevalent – but some productions do use 24 bit. Always ASK the Post Production Supervisor what settings they require!

The OPTIONS tab is where you will find the capability of enabling the PRE RECORD function. The default setting is OFF, but there are some field applications where it is extremely useful to be able to record audio that occurred a few seconds BEFORE you pressed the RECORD button!

Meter Setup

From the MENU button, select Meter Setup. You normally should not need to make adjustments to this window. The default settings are: Peak Hold 1 sec, Release Time Normal, Over Level –0.20 dB, Ref Level Line On.

Mixer Setup

From the MENU button, select Mixer Setup.

Start with the Setup tab.

You can assign a name to any track for your convenience. For example, you could rename Track 1 as “Boom”

Channel Link is for linking a stereo microphone so that one set of controls spans over two input channels. MS Mic mode is for when you are recording unprocessed mid-side tracks with an M-S type mic.

The TRIM GROUP tab allows you to link the gain level of any input so that one track controller knob is master over the group. For most film/video production, you would not use this feature.

The INPUT tab lets you select analog or digital input for each channel. If you are bringing in digital sources, the Fs CONVERT button allows you to turn on a sampling rate converter. You can also activate PHANTOM mic powering for each input.

The SIGNAL PROCESSING tab allows you to reverse the acoustic phase of a given channel, to engage a low cut filter, or to engage a limiter. You can dial in the variables for the low cut settings for each channel by pressing the main LowCut Filter button on the left of the screen.

Channel Setup

From the MENU button, select the Channel Setup window. The Channel Setup window is a fast and convenient way to control the settings for each input channel, and is the best way to work with your channel settings during a session.

The screen of the Channel setup window shows tabs for input channels 1-4. Selecting the arrow tab on the right will bring up channels 5-8, and vice versa.

For each channel, you can turn Phantom power on/off; select analog or digital input; engage the phase reversing tool; engage low cut & adjust the low cut parameters; and engage limiter. The button marked “REC” will arm or disable the track.

Pressing on the small knob located next to the REC button will activate the (real) knob on the Tascam located to the right of the display, marked DATA. That virtual knob on the screen controls the output level from the channel to the LR master mix, and is linked to the physical DATA knob on the Tascam.

Next to the virtual output level knob is another virtual knob marked >L/>R. When this virtual knob is depressed, it becomes linked to the DATA knob. It is the pan control for the output, and determines the stereo mix to the master left and right tracks.

Note that for film/video production, we very seldom want to create a (seemingly) screen balanced, stereo 2-track master for the editor to work with. Instead, fully pan (assign) your input channels to 100% all the way left, or all the way right, so that there is no overlap of audio onto both tracks. During the editing process, a hard left or hard right set of dailies can be panned to screen center as the editor desires. But starting out with two discreet tracks will give the editor more options and better control. Remember that the eight individual iso tracks often will not be utilized until after the picture edit is locked, and the workflow goes to audio post production.

On the lower right of the Channel Setup window is a button with the trackname or label, just under the level meter. Pressing that button allows you to instantly rename the track display to something more meaningful, such as changing “Track 2” to “Boom”, or “Track 5” to “Brad”.

 Updating the Firmware Version

 One of the best features of the Tascam PS-82 is the ability to update your firmware to the latest version. The engineers are continually improving on the basic design, and adding new features as well as shortcuts to simplify the workflow.

When you download a firmware update from Tascam to your computer, it will be in the form of a zipped file. Extract and save the uncompressed version of the file to your hard drive. Then, copy and paste the uncompressed file to the root file of your compact flash card.

If your computer cannot read compact flash cards directly from one of its existing card reader slots, then buy yourself an external card reader at your local computer store. You will need it for copying dailies on the set, anyway.

With your recorder powered OFF, insert the compact flash card into slot 1. Depress the PAUSE and RECORD buttons simultaneously, while you power up the unit. The display screen should show the firmware version that it found on the CF card, and ask you if you want to upload it. If you have a collection of firmware versions on a CF card (I store a copy of all of my firmware on a small CF card that I do not use for audio recording), then it will allow you to select which firmware to load.

 Part 2: Recording without a mixing panel

This section of the guide will explain how to record audio directly into the recorder, stand alone, without a mixing device.

It is assumed that you have already performed the basic setup tasks to the recorder as described in
Part 1, and have created a Project and Scene folder.

XLR Inputs

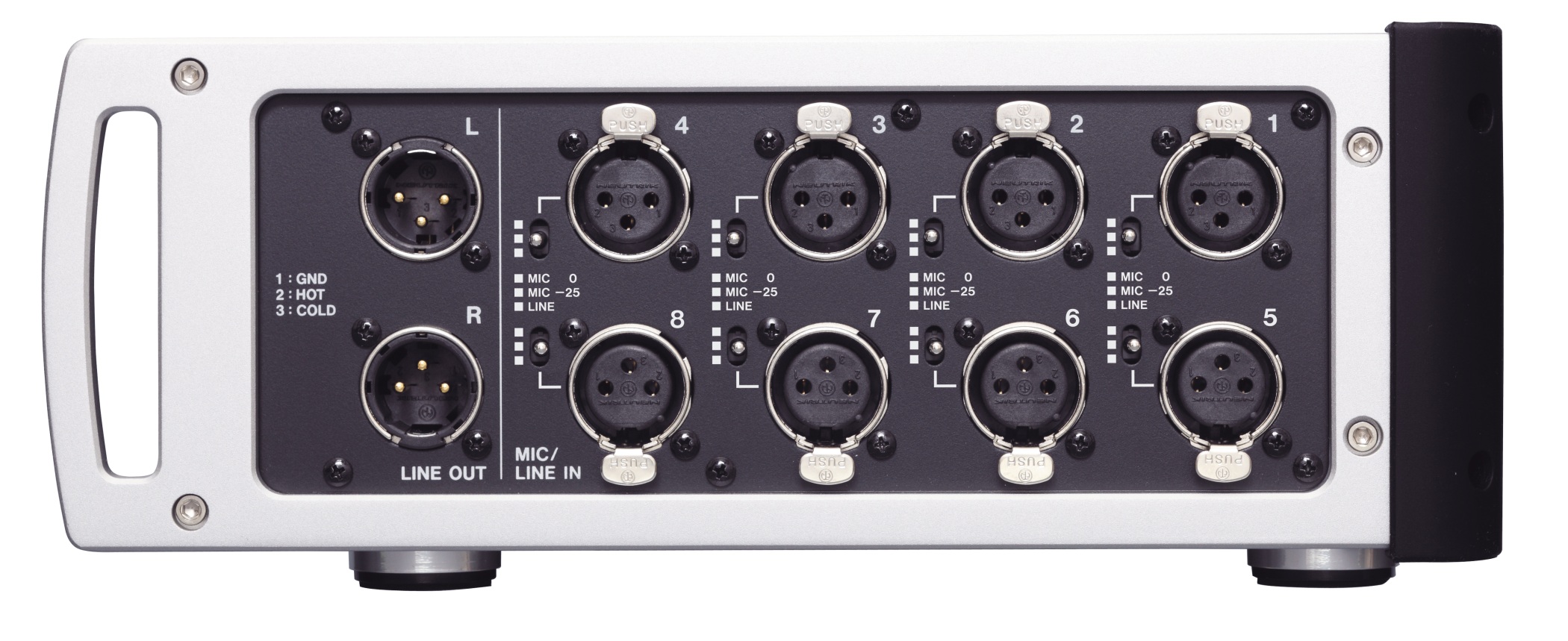

On the right side of the Tascam are 8 XLR inputs and two XLR line level outputs. Plug your source devices into the inputs 1-8. Alongside each input is a physical switch to select normal mic level; strongly attenuated mic level (-25dB); or line level. Use the attenuated mic level if your microphone is putting out very high volume, such as from some hot condenser mics, or from very loud sources.

If your input device is at line level, but you feel that the feed is still a bit on the low side according to your meters, you can adjust the line level overall sensitivity by going to the SYSTEM SETUP screen in the MENU, and changing the REF LEVEL.

Channel Setup

As described in Part 1, go to the Channel Setup screen in the MENU section. Select the appropriate parameters for each input channel that you are using, such as Phantom on/off, and so on. At this stage, you do NOT need to worry about arming the track, nor adjusting the pan and output levels. Those tasks can be done from the HOME screen later on.

HOME screen

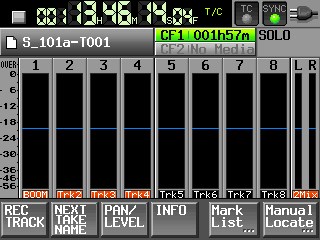

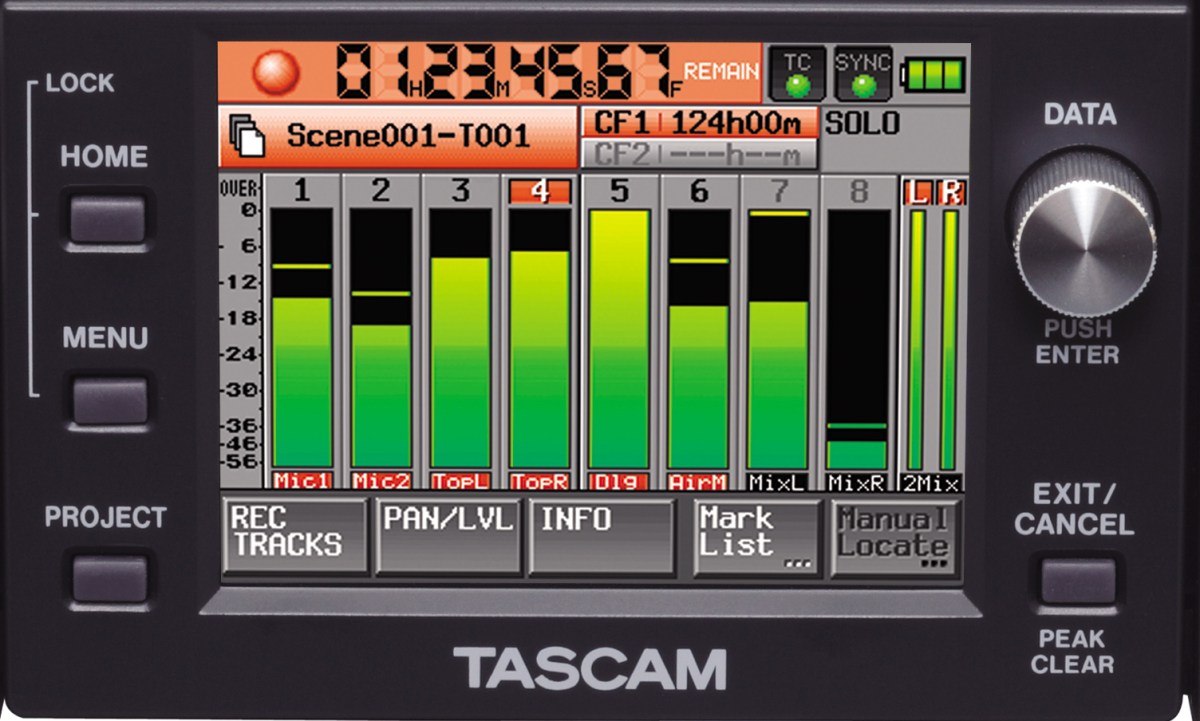

As you might imagine, the HOME screen is where most of your recording activity will take place. The root HOME screen shows meters for input channels 1-8 as well as the LR master mixdown.

The REC TRACK tab allows you to arm/disarm any track for recording. It also allows you to name and number each successive Take. Tracks that are armed for recording will display with red track names.

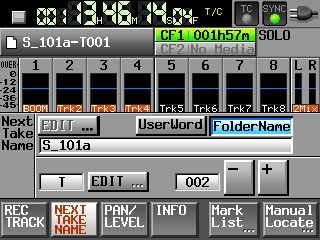

You can name each take by pressing the edit button. Most soundmixers just use the prefix “T” for take, just as we use the prefix “S” for scene and “P” for project. But you are able to use any naming convention that you want.

You can also enter the starting number for the next take. Generally, this would be “1”. But if you are going back to a previous scene, you may need to enter a later number.

Each time that you hit RECORD, and then STOP on the recorder physical controls – the take number will automatically increment.

Another way to edit the NEXT TAKE NAME is from the tab of that label. When you access the take name from its own tab, you cannot accidently arm/disarm an input channel. Otherwise, the screen is similar. Use whatever screen you feel comfortable with.

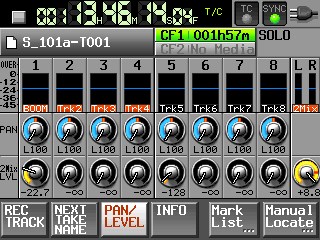

The PAN LEVEL tab is where you would normally access the OUTPUT LEVEL to the Master L/R tracks,  and PAN controls for each input channel. Pressing the virtual knob will link it to the physical DATA knob on the recorder. An advantage of using this screen instead of the Channel Setup screen for these functions is that the PAN LEVEL screen shows meters for each channel as well as the master LR mix.

To return to the root HOME screen at any time, you can either untap the tab or just press the HOME button.

Solo mode

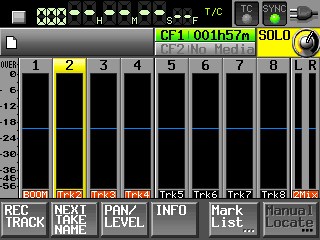

If you press on the meter display of any input channel, it will turn yellow, indicating that you are now in the SOLO monitoring mode. This allows you to listen to any individual channel, rather than to the master LR mix. Note that when solo is lit up, a virtual solo volume control appears in the upper right of the screen. It will vanish when you exit the solo mode.

The default setting for SOLO, in the System Setup screen, is SINGLE. That means only one channel at a time can be solo monitored. If you change the solo mode to MIX, then it is possible to highlight and monitor as many channels simultaneously as you want to. MIX is more versatile for film/video applications.

Setting your recording levels

Plug your source XLR’s into the recorder. The input level (gain) for each channel is adjusted by the 8 physical knobs to the left of the display.

Note that the knob will have no effect on a line level input. To adjust a line level source, you must either increase the output level at the source, or select a different REF LEVEL from the Setup screen.

Use the individual knobs to bring each microphone volume to an optimum level on its meter. For most film/video applications, that would be approximately -20dB or -18dB. This level allows for plenty of headroom in the event of a loud exclamation or sound effect. In the world of digital audio recording, you never want to exceed zero!

After you have set the input levels (referred to as “trim” by the audio industry), the next step is to set the PAN and OUTPUT LEVELS.

Select the PAN LEVEL tab at the bottom of the HOME root screen. Using the virtual knobs, assign each input to L100 (aka 100% left) or R100 (aka 100% right), if you are recording dialogue for film/video.

Select the 2Mix knob and raise the output level to where you want it in the master mix.

Because the Tascam always remembers the last control that you have highlighted, a good technique for setting the mix level is to return to the HOME root screen and adjust the output level while watching the larger meter displays.

You are now ready to record.

Recording on the HS-P82

To begin recording, depress the physical button on the right of the display marked RECORD. To end recording, press STOP.

To record the next take, just press RECORD again. The take number automatically increments.

To playback a take, just press PLAY. To go back to a prior take, or advance to a later take, just press the << BACK or FORWARD>> buttons.

If you need to search for a very distant take, either press the scene/take label box just above the meters, or the PROJECT button. Both will take you to the Project screen, where you will see an index of scenes & takes. Pressing the ENTER arrow button adjacent to the desired take will “load” that take into the current location. Then just use the PLAY keys.

When it is time to roll sound for a new take, just press RECORD. The take number will automatically increment to the correct number, regardless of the fact that you just played back an early take of that same scene.

If you loaded a different scene to play back than the current one, when you press RECORD it will increment to a new take number of the (just loaded) scene. So in that case, you would want to return to the correct scene before going into RECORD. Go back to the index, and select any take from the scene that you need to be in. Press enter to load it. Now you are ready to record the next take.

Head tone and header ID

Before recording any actual film takes, you should always record a header file. That file should consist of the soundmixer reading the basic production information into the slate mic.

Go to the PROJECT button and select the MAKE FOLDER tab. Name this (scene) HEADER-TONE or something similar.

Go to the System Setup screen and select INT MIC for slate type. Press RECORD and speak the following information while depressing the slate button.

• Production Title and Number
• Date
• Name of the soundmixer
• Location
• The following is being recorded with 8 tracks of iso and a 2-track Production mixdown on the Tascam HS-P82 digital recorder at 16bit, 48K (or whatever your format is) at 23.976 timecode (or whatever your timecode rate is).
• The following reference tone will be 30 seconds recorded at negative 20dB (or whatever your headtone reference level is).

Press STOP. Go to the System Setup screen and change the INT MIC to TONE. Note: The RC-F82 allows you to program "Slate (MIC)" and "Slate (TONE)" to the Function keys, so that gives you a way to get quick access to these rather than have to go to the system setup screen every time.

Press RECORD and use the slate button to generate TONE. Capture 30 seconds of continuous tone.

Remember to go back to the PROJECT screen and select or create an appropriate scene, and load it. You do not want to record normal takes while in the HEADER-TONE scene.

New Take, New Scene

As explained before, the take numbers will increment automatically every time you RECORD and STOP. In addition, you can manually change the number for the next take by using the tab at the bottom of the root HOME screen.

To change to a new SCENE number, you need to remember that Tascam uses the term FOLDER instead of scene.

Go to the PROJECT screen either by pressing the scene/take box just above the meters on the HOME screen, or by pressing the PROJECT button. Then, just press the name of your project, and the screen will advance to display all of the scenes within it. You will see the MAKE FOLDER tab at the bottom of the screen.

Select the MAKE FOLDER tab, and type in the new scene number, such as S_002D (or whatever).

This section will provide practical advice for when you employ an external mixing panel in conjunction with the Tascam HS-P82 recorder.

It is very rare in professional filmmaking to record & mix your mics directly into a recorder – without the enhanced control of a mixing board. It might be okay to do that if you are just capturing a simple interview or sound effect – but the recording of high quality dialogue on a theatrical project entails a much greater threshold of control.

(Note that some reality shows are recorded only as isolated tracks, and it is left up to the editors to sort it all out as they build the storyline.)

During the actual production, the soundmixer relies upon one or two boom mics to pick up most of the dialogue along with a necessary degree of background ambiance and live sound effects. When the boom is unable to access some areas in the set, the task relies upon fixed or planted mics to cover those difficult spots. In addition, some actors may wear hardwired or wireless lavaliers.

In a live mix, all of these mics need to be continuously adjusted in order to provide a realistic perspective & texture, along with avoiding dropouts or echo caused by the resultant phase cancellation of multiple mics hearing the same sound and mixing them onto the same track.

Multi-track recording allows us to capture the live mix as well as the “isolation” tracks from all of our on-set mics. It is a way to have our cake and eat it too. During the production, live mics are faded in and out to create one or two tracks that will serve as the production audio soundtrack for dailies/playback, and for the editor to use during the creation of the “picture edit”. At the same time, iso tracks are laid down that capture every important mic at optimum volume, devoid of any fader movement.

After the story sequences have been assembled, cut, and tweaked into the “picture lock”, the footage is turned over to the sound editors to work their magic. At this point in time, elements in the production soundtrack may be edited, enhanced, or reconstructed from “isolation” backup tracks. Failing that, portions of the dialogue may need to be completely re-recorded in a “looping” or ADR session.

Connecting the mixing panel

When an external mixing panel is used with the Tascam, it is not practical to use the internal settings to live mix all of your inputs to the master LR tracks. It is physically too difficult to wrangle the virtual knob that controls the output level of each channel – quickly and conveniently!

Therefore, this workflow bypasses that feature. Instead, we rely upon the capabilities of the mixing panel to produce the master mixdown.

Set the inputs of the Tascam to LINE LEVEL. The MAIN out as well as the DIRECT OUT of the mixer are almost always line level out. If for some reason your mixer is NOT line level out, then set the Tascam inputs accordingly to MIC or MIC ATTENUATED.

Connect one output from your mixer’s main output (either L or R) to Channel 1 of the Tascam input. Most soundmixers only take one (monaural) feed from their board; although you could opt to take a 2-track (stereo) feed and go into Channels 1 and 2, but that would mean giving up one less iso track.

Next, take feeds from the DIRECT OUT connections from your mixer of mics 1 thru 6, and plug them into the Tascam inputs 2 thru 7. The direct outs from your mixer need to be post trim/gain and pre-fader.

In other words, you should be able to set the initial microphone volume going into your board from the small trim or gain knob of each module, while the faders of each module are completely closed. Opening the faders should only control how much sound makes it to the main L/R output of the board, but should NOT have any effect on the direct outs. If moving the sliders does effect the direct out levels, then all of your iso tracks will share whatever good or bad mixing decisions are made during a take, and might not be suitable for rebuilding the soundtrack during editing.

Determine if your mixing board is suitable for accessing the direct outs. You may need to step up to a higher caliber board.

You also need to check whether or not your Direct Outs are pre or post EQ. If the directs are pre-EQ, then it is okay to use your mixer’s settings to match up the tone of your mics. But if the EQ adjustments show up in the Direct Outs, then be very cautious about using the EQ on the board, as that will affect your ISO’s.

On a major production, it doesn’t take much to exceed 7 microphones total in a scene. Typically, there will be one or two boom mics, perhaps one or two planted mics, and then lavaliers on all of the main characters.

So if the Tascam only has 8 inputs, and one of those is already being used for our Production Mixdown, how do we “iso” all of the other mics?

That is why we only plugged direct outs into Channels 2 thru 7, or even 2 thru 6. Utilize Channel 8 (or Channels 7 and 8) for feeds from the Aux Out from the mixer.

Not every character wearing a lavalier needs their own iso track all the time. As a soundmixer, you could group a few minor characters together onto a single Aux track; or you could select characters that never appear in the shot at the same time (example, Actor A has a line in the beginning of the shot, and Actor B only has a line near the end of the shot) and record them onto the same audio track.

Use the Aux Outs as a means of grouping these “excess” microphones.

Generate reference tone in your mixer to zero VU level on an analog board, or appropriately lower on a fully digital unit; and read the corresponding levels on the Tascam. They should read around –20dB to
–15dB.

If the line level input to the Tascam reads too low, you can adjust it by going to the System Setup screen and selecting a different Ref Level.

Use the Channel Setup screen to rename your Tascam tracks for easy identification, such as: Mix, Boom1, Boom2, Sink (location of a planted mic), Joe, Mary, and so on.

On Channel 1, which represents the live mixdown, you want to send its output over to the 2MIX master LR tracks. If it is a monaural mix, go ahead and center the pan pot so that the single track mixdown can be heard on both master LR tracks. If you are recording a 2-track mixdown from your mixing panel, then go ahead and send each of them respectfully to only L100 or R100.

Otherwise, use your external mixing board as you normally would. Connect your boom operator to an Aux Out or Comm Out, connect your wireless monitoring system (for the Director, Script, et al) to their Aux Out, and so on.

Remember, use the trim/gain pots on your mixer to adjust the output level for the iso’s being sent to the Tascam. Use the faders to open, close, and adjust the levels of each mic in your live mix. Very often, an actor’s lavalier might not be used in the mix, but will still be present in all its entirety on the iso track, should the editors want to access it in the future.

Note that it is beyond the scope of this users guide to explain to the novice all of the basic functions of portable mixing panels and how they are used for film and video production. This guide assumes that you are already familiar with the workings of whichever make and model of the particular external mixing board that you intend to use with the Tascam recorder.

 An excellent alternative to the use of an external mixing panel is to use Tascam’s companion RC-F82 remote Fader Unit.

The F82 is technically not a mixing panel; it is a remote controller for the recorder. That being said, for all intents and purposes, it serves the purpose of a mixing panel for our application!

The unit allows us to control up to eight inputs and mix them down to the two master LR tracks of the Tascam recorder. The fader controller offers a choice of using the sliders to adjust the trim/gain of each input, or to control the output to the LR tracks. A dedicated knob for each input module is also assignable.

For film/video applications, most soundmixers prefer to utilize the sliders for the output to the master LR tracks, and the rotary knob for adjusting the basic trim/gain of the input – as it would be on a conventional mixing board.

This compact accessory has the same footprint (dimensions) as the recorder, thus making it ideal for use where space is at a premium, such as on a smaller production cart, or even in a camera car.

Whereas an external mixing panel would take up one (or two) of our eight available input channels of the recorder in order to record the live production mix, the Fader Unit allows complete control over each input channel when mixing down to the LR master tracks. That results in 8 iso tracks, rather than only 6 or 7.

The downside is that there are only 8 inputs total, so we are limited to no more than 8 mics on the set. But for the overwhelming majority of projects, 8 mics is more than sufficient.

Connecting the RC-F82 to the recorder

Cables required:

• PS/2 male to PS/2 male jumper cable (supplied)
• ¼-inch stereo plug to ¼-inch stereo plug headphone jumper cable (supplied)
• XLR 3-pin male to XLR 3-pin female short microphone cable (two, user provided)

The Fader unit draws its power from the PS/2 cable that connects it to the main recorder. Make sure that the recorder is powered OFF before you connect the devices! Connect the cable from the KEYBOARD socket on the recorder to the MAIN UNIT socket on the controller. Should you need to plug in a keyboard to the setup, there is a KEYBOARD socket provided on the controller.

(Since the touchscreen provides easy data entry, most soundmixers do not see the need for an external keyboard. But the option is there for you if you want to use one.)

Next, you will want to connect the headphone out jack from the recorder to the headphones in jack on the back panel of the Fader unit.

Finally, connect the two XLR line outputs on the side of the recorder to the XLR line inputs marked LINE IN on the back of the Fader unit.

Connecting the RC-F82 to your Boom Operator

To begin with, you will need either a professional duplex “boom operator” cable (equipped with a female XLR headphone feed at the panel end, and standard headphone jack at the operator’s end); or a standard XLR mic cable equipped with an XLR to ¼ headphone jack adapter at the other end.

If you are mixing down to a monaural master LR track, you can plug your boom operator(s) into either the left or right output marked LINE OUT2/TALKBACK.

If you are mxing down to a 2-track or stereo master, then you would require a custom adapter or Y-cable to merge the L-R outputs into one combined mono feed. For most film/video applications recorded with multi-track iso’s, it is customary to only provide a monaural mixdown for dailies and picture edit, so this is normally not an issue. But if it is, then have a technician build you an appropriate adapter.

In the event that your output to the boom operator results in audio only coming out of one side of the headphones, then just use a simple ¼-mono to ¼-inch stereo headphone adapter to solve the problem for the meantime, until a technician can permanently rewire the boom cable.

If your boom operator(s) need to communicate directly to the soundmixer, their talkback mics can be plugged in to the XLR inputs marked RETURN IN on the back of the Fader unit.

Output to the Boom operator is at line output. You may want to add some sort of inline volume control or switchable attenuator (such as a -10, -20, -30 pad) if your boom operator prefers to monitor at lower volume.

Communicating to your Boom Operator

Located directly beneath the label that reads TALKBACK is a button and a sliding switch. When the switch is in the OFF position, it means that audio from the live mix is feeding out to the Boom Operator. When the switch is moved to the ON position, it blocks the program audio and replaces it completely with your talkback mic. Pressing the button activates the built-in microphone located in the upper right hand corner of the Fader unit, just above the module for Channel 8.

Another way to address your Boom Operator is to use the slate mic located on the recorder itself. Be aware, however, that any audio from the slate mic goes onto all of the tracks and would be recorded.

In the upper right hand corner of the Fader unit is a section labeled RETURN IN. These pots control the mix of program audio versus return audio from the boom operator’s personal mic. The SOLO buttons allow the soundmixer to only hear the communication, without the distraction of the program audio.

Soundmixer’s Headphones

The section labeled PHONES controls the main headphone feed coming out of the PHONES jack located at the left front of the Fader unit.

Master volume for the headphones is controlled by the headphone volume knob on the RECORDER. This signal passes into the Fader unit, where the volume can be re-adjusted by the phones volume knob on the Fader unit. Once you understand this signal flow, you can see how it could be utilized to split the headphones feed at the recorder (say, for example, to transmit program audio to the Director or Script Supervisor on the set), and then still have capability of re-adjusting the volume for the comfort of the soundmixer.

The two MONO buttons allow you to monitor the Left or Right master tracks in mono with both ears.

CAUTION: Do not use the L-R Master Gain pot, located in the lower right corner to adjust the listening volume of your headphones! Because of its closer placement on the board, some users mistake it for their volume control, since a change to the L-R master track recording gain does result in a change of listening volume. Any changes to that pot will affect the level of the recording.

 Monitor Feed for Director/Script

 It is customary on major sets to provide wireless headphones to the Director, Script Supervisor, and other personnel as needed (such as an extra boom operator). We use what is referred to as an Assistive Listening System, which consists of a wireless transmitter connected to one of our outputs, and multiple wireless receivers (belt packs) to feed each set of headphones. When connecting to the Tascam, you either utilize Line Output 1, or you can split the signal from the main Headphone Out on the recorder itself.

To split the signal at the Headphone Out jack, simply insert a ¼-inch stereo plug to (2) ¼-inch stereo jack Y-cable, and raise the recorder headphone volume to near maximum (or as loud as needed). Connect the transmitter to one leg of the Y. Connect the other leg of the Y to the headphone input jack of the Remote Fader, as you normally would. Remember that you have a secondary headphone volume control on the Remote Fader itself, which you would use to adjust the sound mixer’s headphone listening level.

Remote Setup of the Fader unit

Before you begin recording with the Fader unit, you must set up its parameters. From the MENU button on the recorder, go to the REMOTE SETUP screen. (If there is no remote setup screen present, you need to update your firmware software.)

The Remote Setup screen allows you to assign values to the four Function keys to instantly open some of the menu screens. Many soundmixers like to program F1 as Home (main); F2 as Home (next take name); F3 as Home (pan/level); and F4 as Mixer (low cut filter). However, feel free to program the keys to your own preferences.

Next, you need to select the functions of the slider and encoder knob of the channel modules.

For film/video applications, the slider should control the output level to the L-R master tracks, and the encoder knob should control the trim/gain of the input signal. Select the button marked TRIM/LEVEL. Note that the top word represents the encoder knob, and the lower word represents the slider.

For music recording, you might want to reverse it and use the slider to control input gain, while the encoder knob controls the output to the L-R master tracks. And for live theatre, you might want to have the encoder knob used for instant panning, so that you could follow actors movement across the stage.

Use of the SHIFT KEY

The SHIFT keys are located in the upper left and lower right of the Fader unit.

Their functions are labeled in blue.

Shift+F1 thru F4 gives you quick access to the menu screens that you have programmed.

Pressing the SELECT key by itself, above each channel module, opens the Channel Setup screen for that particular channel.

Shift+SELECT will arm/disaram any channel for recording.

Pressing the SOLO button by itself, above each channel module, will instantly SOLO that channel for monitoring. Pressing SOLO again will exit the SOLO mode.

Shift+SOLO will MUTE a particular channel.
